Trillingdemper Type B
Home > Rubber producten > Trillingdempers > Trillingdemper Type B

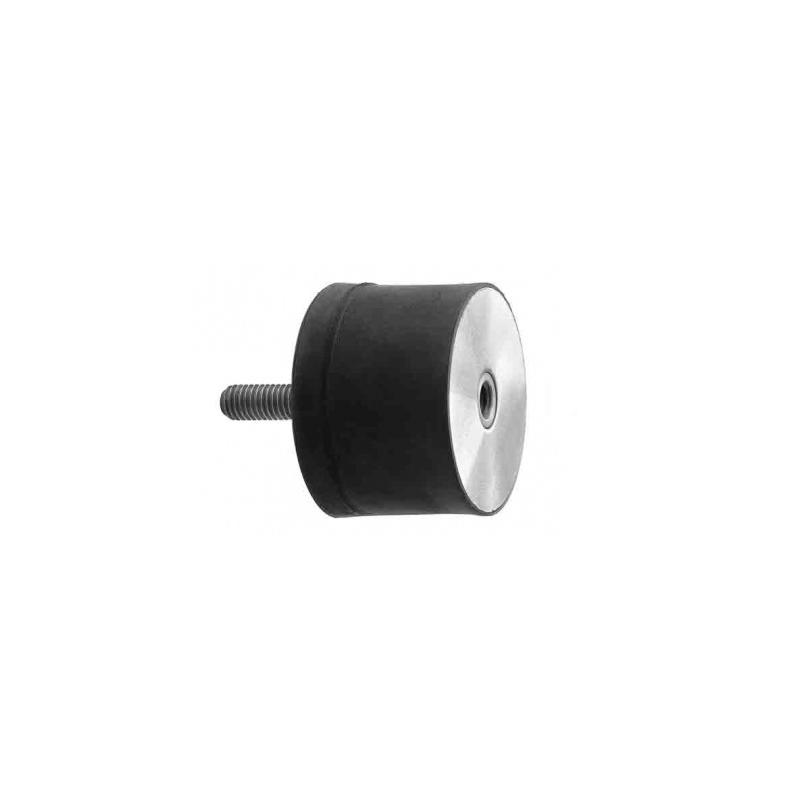

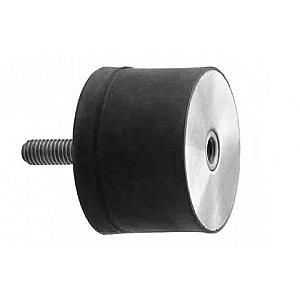

Trillingdemper Type B
Rubber : Natuurrubber 55 Shore-A
Maximale drukbelasting Fmax in N
(10 N = 1 kg)

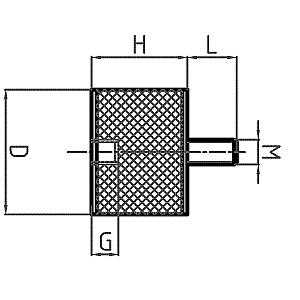

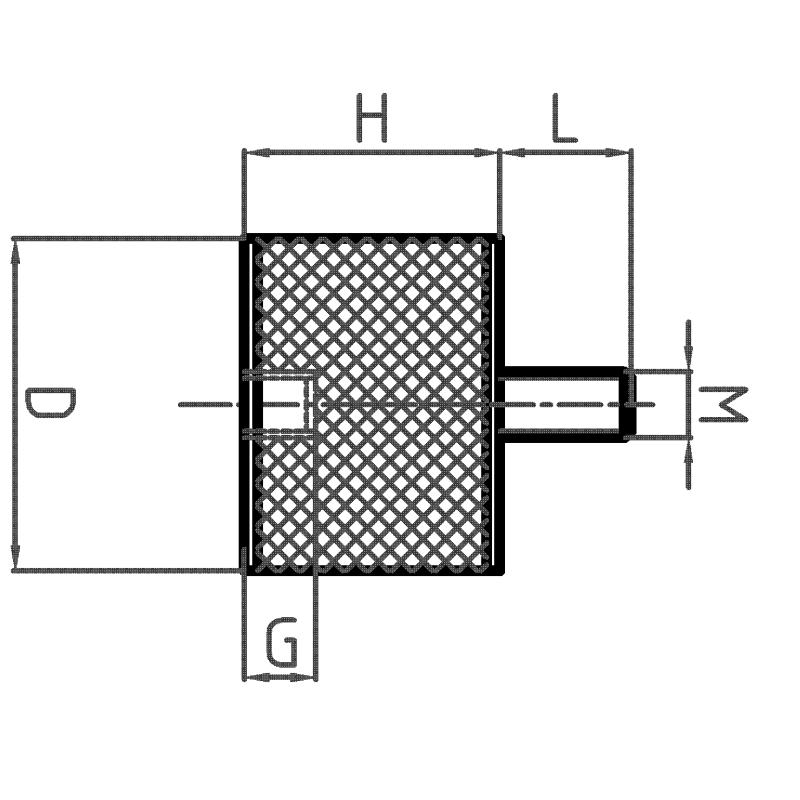

Alle maten in mm



Alle prijzen inclusief BTW

D x H M L G Fmax (N) Prijs (incl.) Aantal
10 x 10 M4 10 4 56 € 1,90
15 x 10 M4 10 4 146 € 1,96
15 x 15 M4 13 4 122 € 2,12
20 x 15 M6 15 6 286 € 2,16
20 x 20 M6 15 6 211 € 2,27
20 x 25 M6 15 6 194 € 2,33
15 x 30 M4 13 4 97 € 2,40
25 x 20 M6 18 6 378 € 2,48
25 x 25 M6 18 6 324 € 2,54
25 x 30 M6 18 6 303 € 2,69
30 x 20 M8 20 8 653 € 2,98
30 x 30 M8 20 8 461 € 3,14
30 x 40 M8 20 8 421 € 3,48
40 x 30 M8 23 8 962 € 4,04
40 x 40 M8 23 8 891 € 4,73
50 x 40 M10 28 10 1403 € 6,18
50 x 30 M10 28 10 1925 € 6,39
50 x 50 M10 28 10 1275 € 7,43
70 x 45 M10 30 10 3020 € 11,06
75 x 50 M12 37 12 3378 € 12,92
75 x 40 M12 37 12 4094 € 14,34
100 x 40 M16 45 16 11168 € 23,75
100 x 60 M16 45 16 6395 € 28,62
